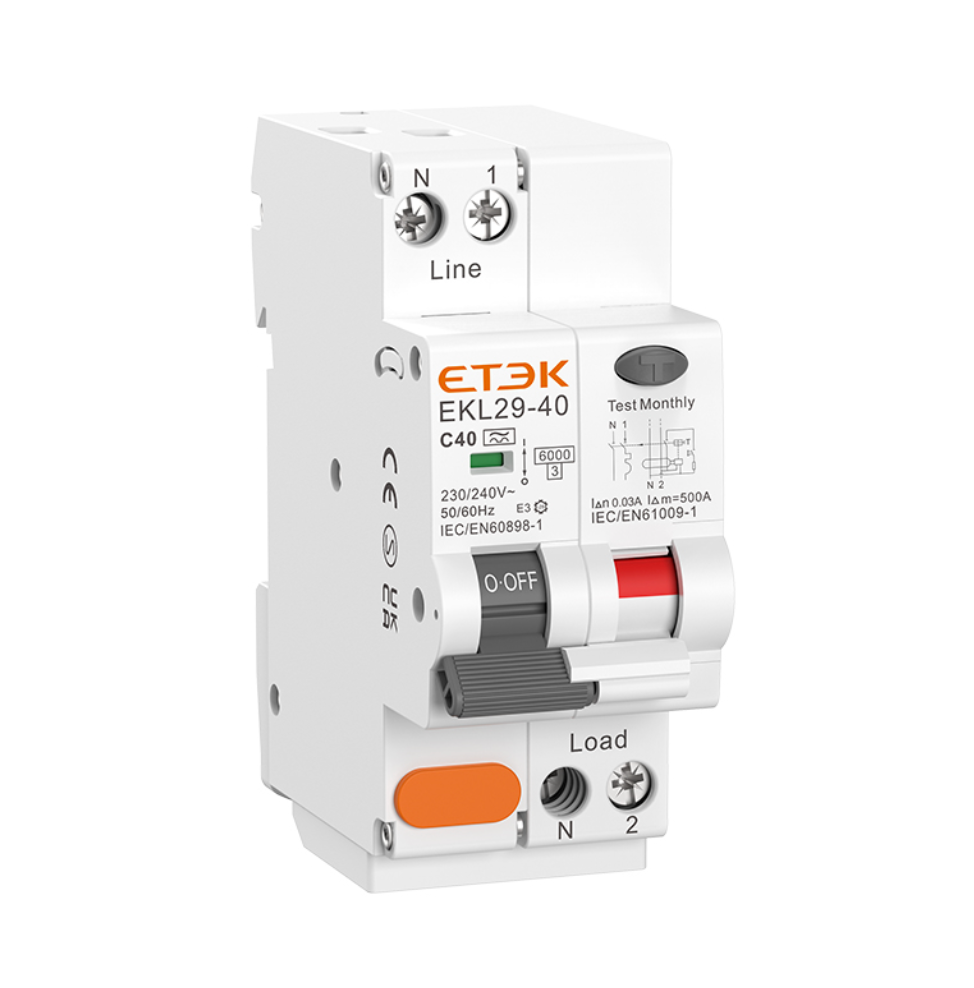

RCBO Electronic Type Residual Current Circuit Breaker with Overcurrent Protection
Der EKL29-40 RCBO ist ein elektronischer Fehlerstromschutzschalter mit Überstromschutz. Er wurde entwickelt, um einphasige Endstromkreise in gewerblichen und industriellen Gebäuden mit einem maximalen Nennstrom von 40A zu schützen.
- Norm: IEC61009-1, IEC60898-1
- Typ: AC, A
- Nennstrom: 6 bis 40A
- Nennspannung: 230/240V
- Anzahl der Pole: 2P (1P+N)
- Bemessungsdifferenzstrom (IΔn): 30, 100 und 300mA
- Nennschaltvermögen bei Kurzschluss: 6kA
- Auslösecharakteristik: B, C
- Umgebungstemperatur: -25 bis +55 ºC
- Anschluss: Oben
Der EKL29-40 RCBO ist ein elektronischer Fehlerstromschutzschalter mit Überstromschutz. Er wurde entwickelt, um einphasige Endstromkreise in gewerblichen und industriellen Gebäuden mit einem maximalen Nennstrom von 40A zu schützen.
- Norm: IEC61009-1, IEC60898-1
- Typ: AC, A
- Nennstrom: 6 bis 40A
- Nennspannung: 230/240V
- Anzahl der Pole: 2P (1P+N)
- Bemessungsdifferenzstrom (IΔn): 30, 100 und 300mA
- Nennschaltvermögen bei Kurzschluss: 6kA
- Auslösecharakteristik: B, C
- Umgebungstemperatur: -25 bis +55 ºC
- Anschluss: Oben
Technische Daten
Technical Data
| Parameter | Value |
|---|---|
| Standard | IEC/EN61009-1, IEC/EN60898-1 |
| Protection | Ground fault, Overcurrent and short circuit, Over-voltage (selectable) |
| Type of trip | Ground fault: Electronic Overload and short circuit: Thermo-magnetic |
| Type of protection (electric leakage) | AC, A |
| No. of poles | 1P+N 2 module, N line with disconnected |
| Rated voltage (Ue) | 230/240V~ |
| Rated frequency | 50/60Hz |
| Rated currents (In) | 6, 10, 16, 20, 25, 32, 40A |
| Rated sensitivity currents (I△n) | 30, 100, 300mA |
| Residual current off-time under I△n | ≤ 0.1s |
| Rated residual making and breaking capacity (I△m) | 500A (In≤50A) |
| Rated breaking capacity | 6,000A |
| Energy Limiting Class | 3 |
| Rated impulse withstand voltage (1.2/50) Uimp | 4,000V |
| Dielectric test voltage at Ind. Freq. for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B: (3-5) x In, C: (5-10) x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Ground fault indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -25℃ to +55℃, Max.95% humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max. terminal size for cable | 16mm² |
| Max. tightening torque | 2.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top |
